Flanges play a vital role in industrial systems, acting as connectors for pipes, valves, and other equipment. Their strength and precision are crucial for preserving system integrity and performance. Among the critical yet frequently underestimated aspects of flange production is custom flange marking. Customizing these markings to suit specific applications enhances compliance, enables traceability, and ensures optimal functionality for diverse operational needs.

The Need for Custom Flange Marking

Custom flange marking has become indispensable in today’s industrial environment, where precision, safety, and compliance are paramount. As critical components that connect pipes and equipment, flanges rely on accurate markings to ensure they operate efficiently while adhering to regulatory and operational requirements.

Custom markings go beyond standard identifiers, addressing unique application requirements by providing critical information such as material grade, pressure ratings, and manufacturing details. These markings enhance:

• Traceability: Custom markings allow for easy identification of production batches, materials, and manufacturers, which is invaluable in quality control and resolving issues like defects or recalls.
• Compliance: Many industries must adhere to strict standards, such as ASME, ANSI, or ISO. Custom markings provide the detailed information necessary to prove conformity with these regulations.
• Safety and Reliability: Accurate and clear markings ensure that components are correctly selected and installed, reducing the risk of operational failures and improving overall system safety.

Custom flange marking is not just a technical requirement; it is a vital part of ensuring the functionality, safety, and accountability of industrial systems.

Custom Flange Marking Options

Custom flange marking offers a range of options to meet diverse industrial needs. These options can be broadly categorized into marking techniques, marking content, and their suitability for specific applications.

Flange Marking Techniques

Choosing the right marking technique is crucial for ensuring that the information applied to a flange is durable, legible, and suited to the specific application. Here are several main methods available:

1. Laser Engraving

Laser engraving is a precise and permanent marking method. It uses high-powered lasers to etch details like logos, part numbers, and barcodes onto the flange surface. This technique offers exceptional durability, as the markings are resistant to wear, corrosion, and harsh environments. It is especially suitable for high-value components in industries such as aerospace, medical, or defense, where detailed and long-lasting markings are essential.

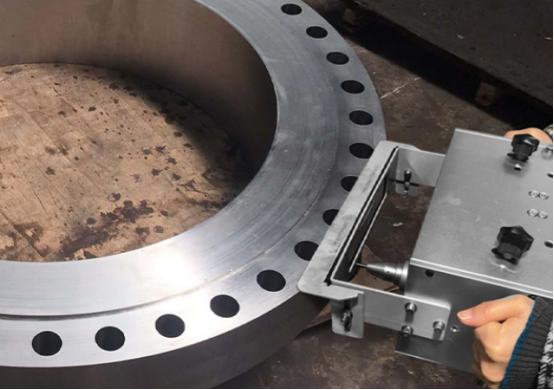

• Dot Peen Marking

Dot peen marking uses a stylus to create small, controlled dots on the flange’s surface. The process is highly durable and works well on a variety of materials, including metals and alloys. This technique is ideal for heavy-duty industries like automotive, construction, and heavy machinery, as the markings are permanent and resistant to wear, even in harsh conditions.

• Stamping

Stamping is an economical, efficient method commonly used for high-volume production. It involves pressing a die onto the flange to create deep, permanent impressions. This technique is ideal for marking basic information such as flange size, pressure rating, and material type. While it is cost-effective, it may not provide the fine detail required for complex designs or logos.

• Etching

Etching, whether chemical or mechanical, produces detailed markings without altering the flange’s surface properties. It’s ideal for creating fine, intricate designs or serial numbers. Etching is commonly used in industries requiring high-precision marking, such as electronics or high-end manufacturing, where surface integrity and clarity are crucial.

Each marking technique has its strengths, allowing manufacturers to select the best option for their specific needs, whether durability, cost-efficiency, or precision.

Flange Marking Content

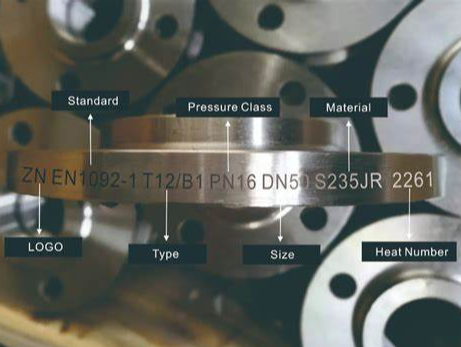

The content included in custom flange markings is crucial for ensuring that the flange performs as expected and complies with industry standards. Depending on the application, the marking content can vary, but it typically includes the following essential elements:

• Material Identification: Specifies the material grade or alloy of the flange (e.g., ASTM, ANSI, or custom codes). This is crucial for ensuring compatibility with the system’s operating conditions, including temperature, pressure, and corrosion resistance.
• Dimensions: Includes important measurements such as the flange’s diameter, thickness, and bolt hole pattern. This ensures the flange is correctly sized for the piping or equipment it will connect to.
• Pressure and Temperature Ratings: Indicates the maximum pressure and temperature the flange can safely handle. This is crucial for ensuring the flange is used within its designed specifications and capabilities.
• Manufacturer Information: Typically includes the manufacturer’s name, logo, and production batch number for traceability. This information is essential for quality control, warranty claims, and addressing any defects or recalls.
• Compliance Markings: In some industries, flanges must meet specific standards or certifications (e.g., ASME, ISO). Including these symbols or codes ensures the flange complies with necessary safety, quality, and performance requirements.

Incorporating these detailed elements into flange markings allows manufacturers to provide crucial information for safe and efficient installation, operation, and maintenance. Properly marked flanges not only ensure compliance with industry regulations but also help prevent errors during system assembly.

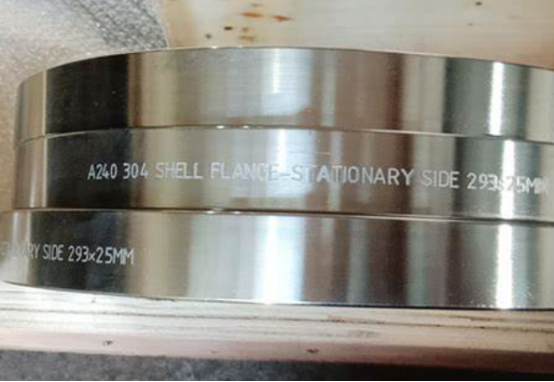

Flange Marking Placement

Proper placement of markings is critical to ensure readability and longevity. Common areas for marking include:

• Outer Rim: Typically the most visible and accessible area, ideal for essential information such as size, pressure rating, and material type.
• Raised Face: Often used for more sensitive markings, such as compliance symbols or serial numbers, as this area is less exposed to abrasion.
• Bolt Holes: Occasionally used for unique identification or special codes, though this is less common. Markings here can help ensure accurate installation during assembly.
• Flange ID Area: This area may also carry specific codes or batch numbers, aiding in traceability while avoiding interference with the flange’s sealing surface.

Proper placement ensures that markings remain legible and intact, contributing to both functionality and safety.

Applications of Custom Flange Marking

Custom flange markings are vital across various industries. Here are the main areas where they are crucial:

• Oil and Gas Industry: In high-pressure, high-temperature systems, custom markings help identify material types, pressure ratings, and safety standards, ensuring operational integrity in critical applications.
• Chemical Processing: Custom flange markings indicate corrosion-resistant materials and compatibility with aggressive chemicals, helping to prevent leaks and failures in highly corrosive environments.
• Pharmaceuticals: Precise markings ensure compliance with stringent sanitary standards, facilitating safe and reliable operation of piping systems in facilities where cleanliness and safety are paramount.
• Construction and Infrastructure: In complex piping systems, custom markings help ensure the correct installation and assembly of flanges, improving efficiency and safety in large-scale construction projects.

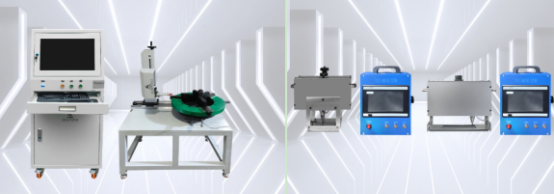

Need to Invest in Flange Marking Machines?

Investing in flange marking machines is a smart move for manufacturers aiming to improve efficiency, consistency, and compliance.

• These machines automate the marking process, reducing manual labor and speeding up production, which helps meet tight deadlines. Precision is another key benefit; automated systems ensure accurate, uniform markings across all flanges, essential for industries where traceability and standards are critical.
• Flange marking machines also offer versatility, accommodating various marking techniques like laser engraving, stamping, and etching. This allows manufacturers to cater to diverse customer requirements and meet industry-specific standards.
• Additionally, while the initial investment may be substantial, over time, it leads to cost savings by eliminating the need for third-party services and minimizing errors.

Zixu Machine, a leading flange marking machine manufacturer, offers advanced, reliable solutions for manufacturers. Their machines provide high efficiency and precision, ensuring superior quality and compliance, making them an excellent investment for long-term operational success.

To know more about flange marking machines, you can contact us.
