| Technical characteristics

Zixu company developed from the production of pneumatic marking pin in 2006, and now has more than one thousand models. Standard models are in stock and available for same day shipment. Customized service includes processing by drawing, colors and materials.The period for dispatch for customized model is 3 to 7 days.

The common delivery way is by express as DHL, FedEx, Aramex and others. Standard package is carton box. Delivery period is around 7 days.

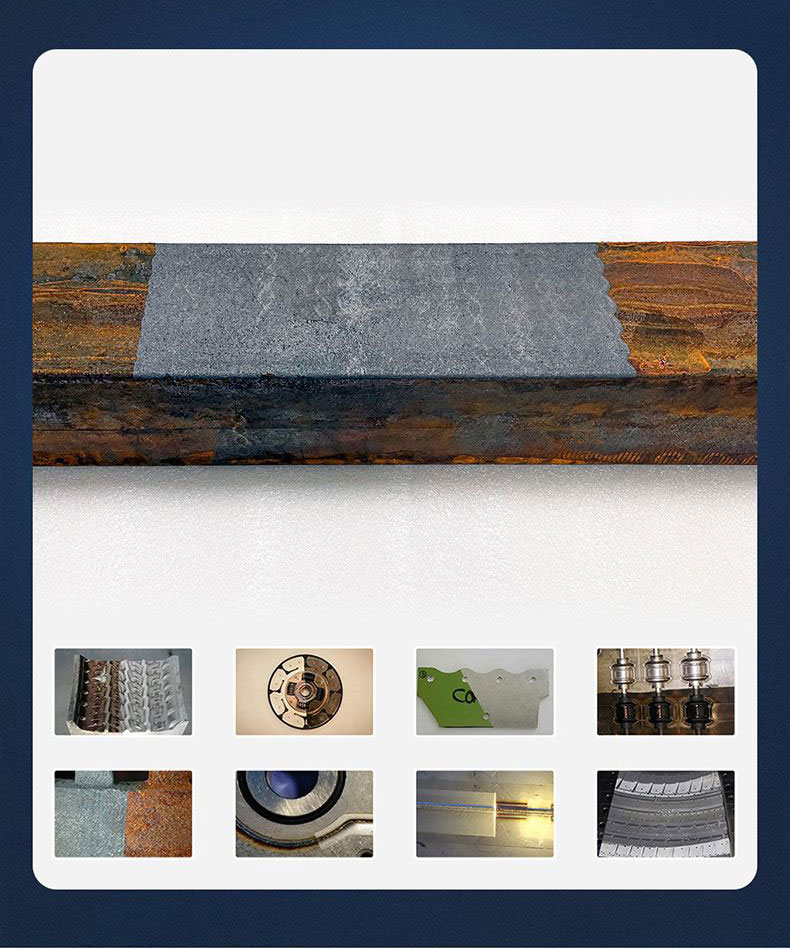

Better cleaning effect

8 cleaning modes are optional

DHCC2000 supports 8 cleaning modes, which can be applied to many kinds Complex cleaning scenarios.Support slow rise and slow drop of laser power Real time control, better cleaning effect ,no damage to the substrate.

Higher cleaning efficiency

Cleaning width up to 420*420mm

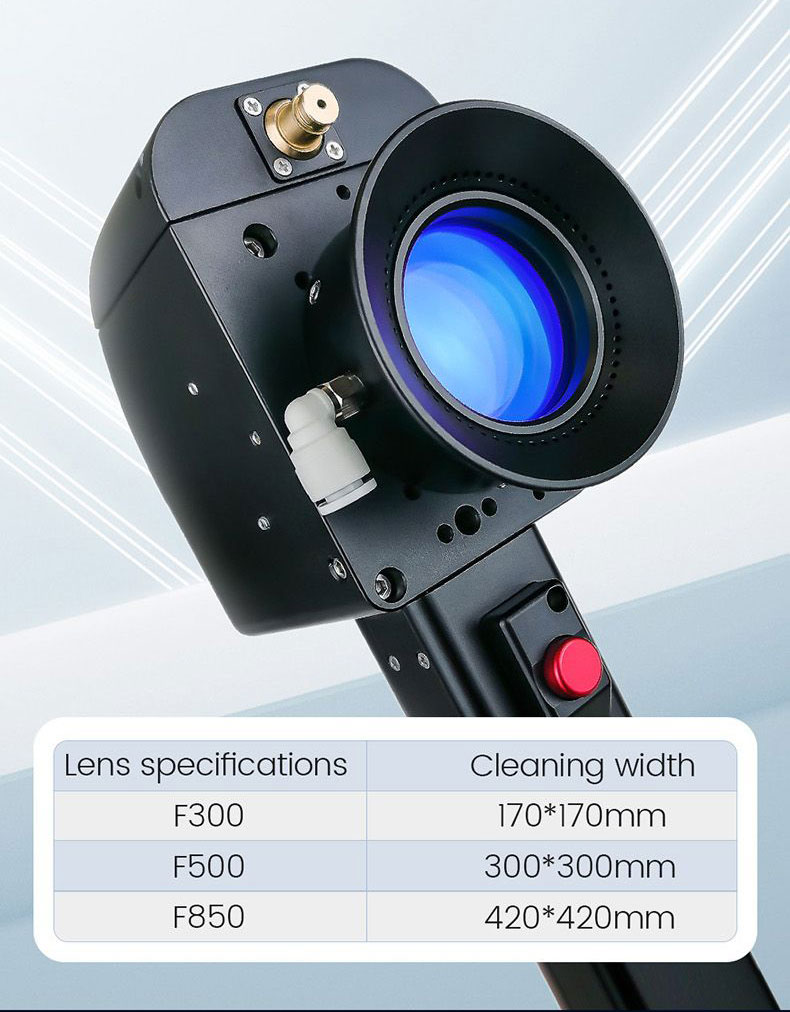

Imported quartz field Lens can support higher laser power,Better stability and higher efficiency.It supports a variety of field Lens specifications,Adapt to more application scenarios.

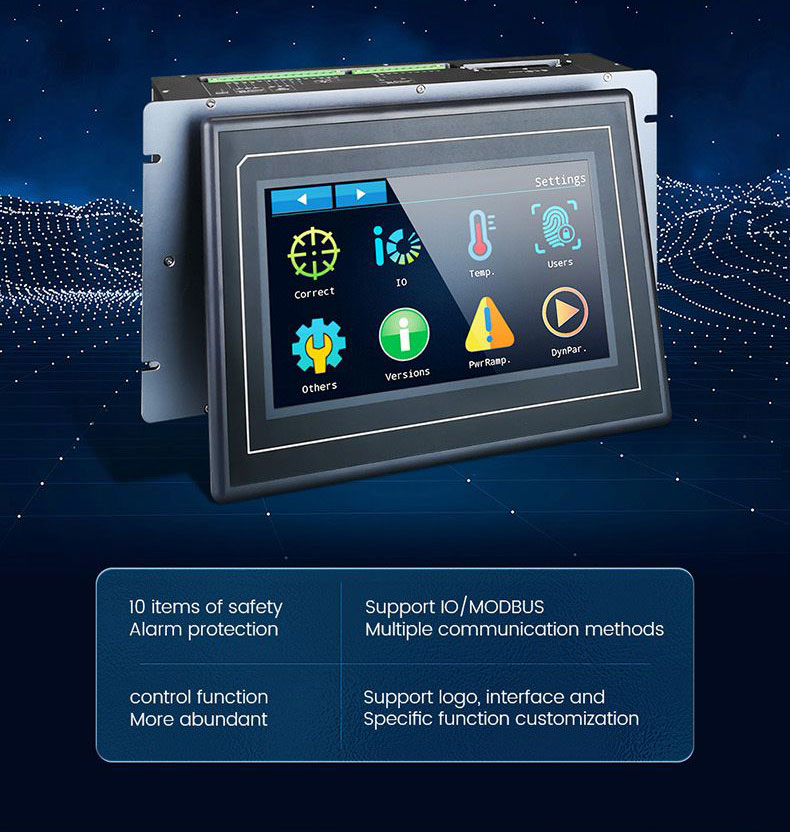

Powerful software

DHCC2000 has 10 security alarm protection systems,The product is more stable.Support multiple 10 Modbus.More communication methods.and control functions.Simultaneous support LOGO,interface and specific function customization.

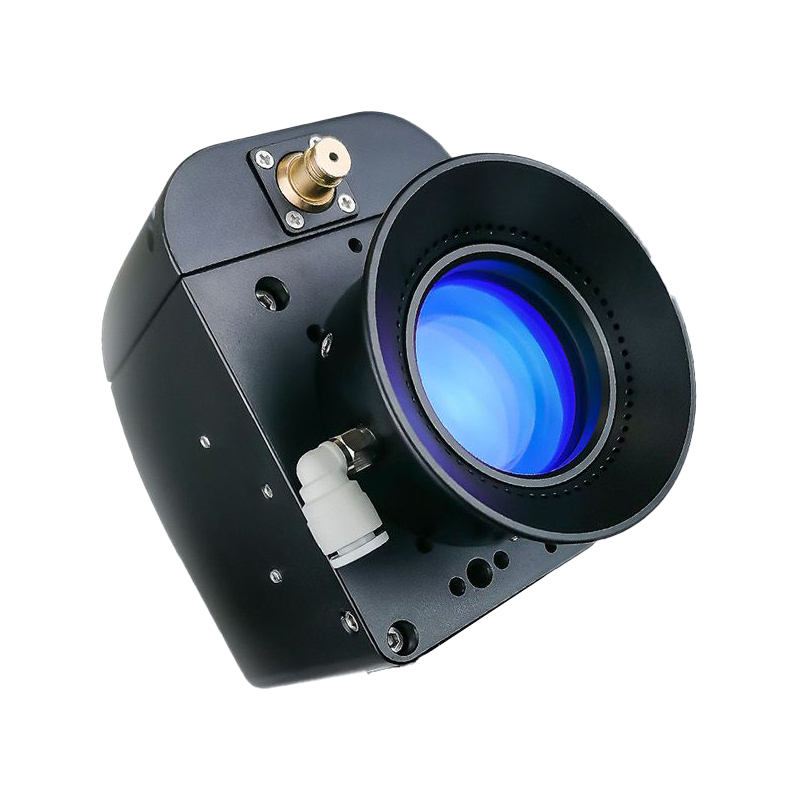

Flexible and rich hardware configuration

Compatible with mainstream lasers in the market

DHCC2000 adopts self-developed high-speed galvanometer motor,The product structure design is

more reasonable and the stability is higher.Compatible with mainstream lasers in the market output port QBH) supporting structure customization.The cable can support up to 50 meters.

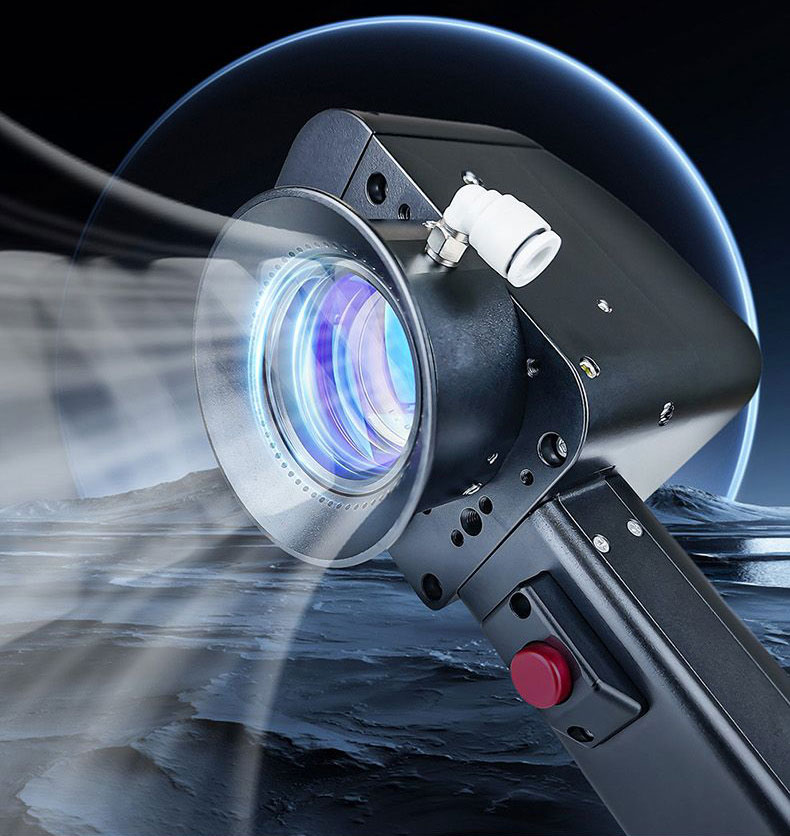

Annular air knife protection upgrade

The unique multi hole annular air knife design of wind tunnel,All directional protection and protection of the lens enable DHCC2000 to Can be more safe and stable in the working environment of, Better improve cleaning efficiency.

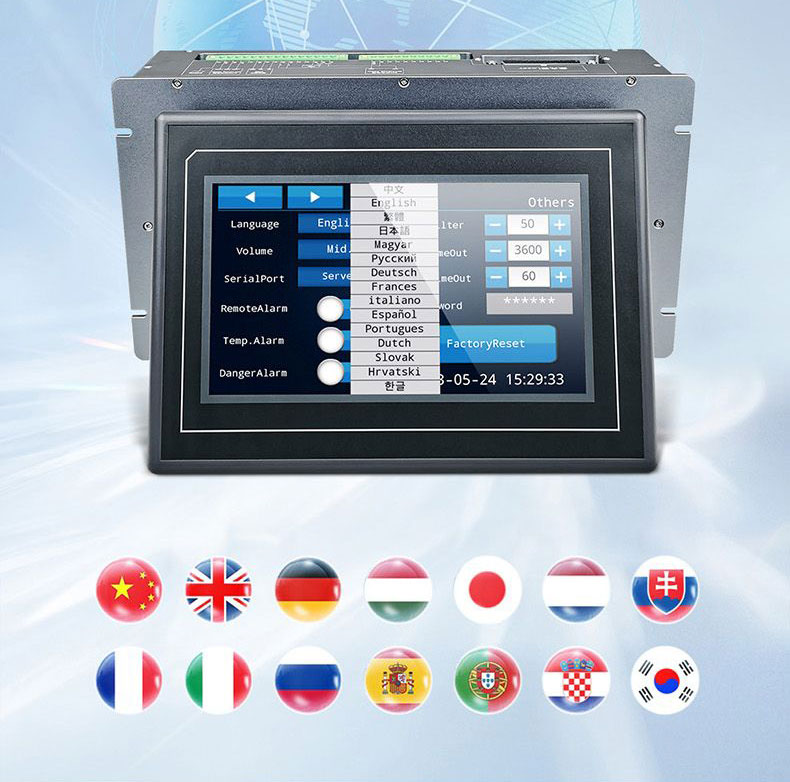

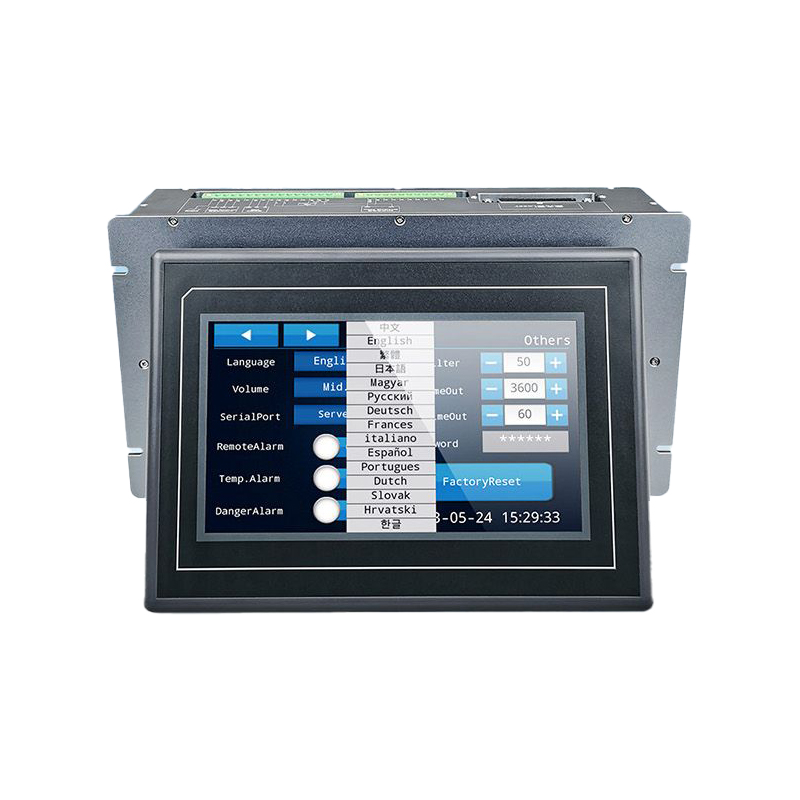

Support 15 language switching

DHCC2000 supports 15 language switching, which can accommodate more Used by national users. There is no obstacle in man-machine communication.

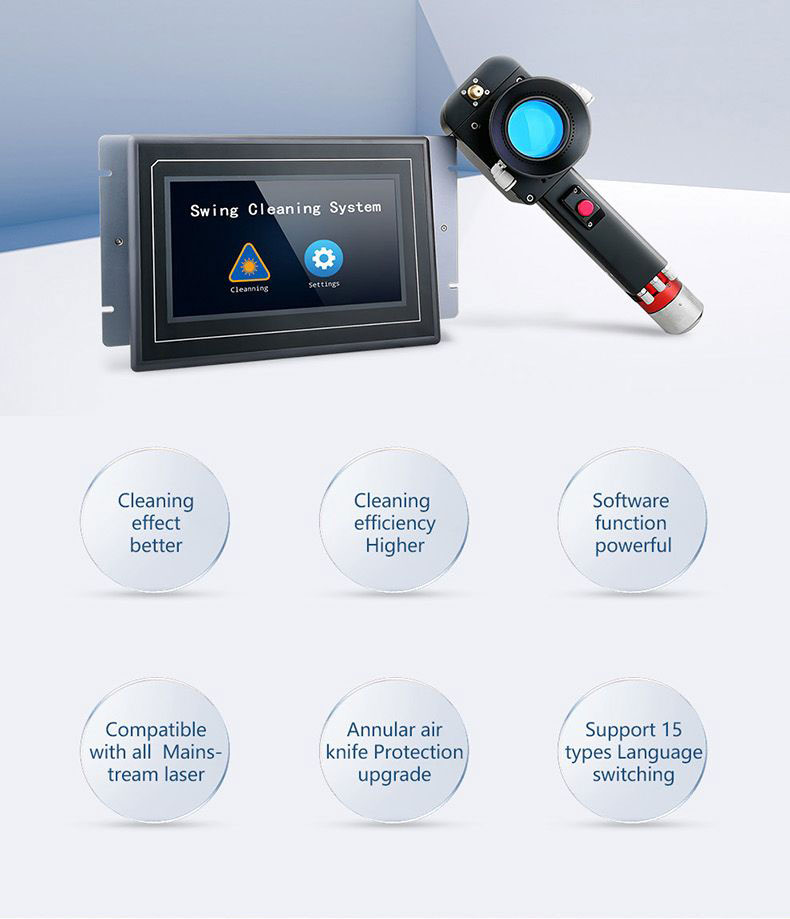

Product Advantages:

• It supports 8 cleaning modes and can be used for various complex cleaning mirrors.Support the slow rise and fall of laser power real-time control better cleaning effect without damaging the substrate.
• DHCC2000 has 10 security alarm protection systems and
• the product is stable Stronger.Support IO Mod bus multiple communication modes and control functions More abundant. It also supports the customization of LOGO,interface and specific functions.
• DHCC2000 adopts independently developed high-speed galvanometer motor with product structure More reasonable design and higher stability.Compatible with mainstream lasers in the market output port QBH Support structured customization and the cable can support up to 50 meters.
• DHCC2000 supports 11 language switching and can adapt to users in more countries use.There is no obstacle in man-machine communication.

| PERFORMANCE PARAMETER

Name	DHCC2000	DHCC3000
Laser interface	QBH	QBH
Cleaning format	420*420mm	420*420mm
Cleaning accuracy	<1um	<1um
Cleaning speed	<30000mm/s	<30000mm/s
Cleaning Mode	Straight/rectangular/circular/sinusoidal/peta	Straight/rectangular/circular/sinusoidal/peta
Support laser power	2000W/CW	3000W/CW
Temperature protection	1	1
Water-coo	Yes	Yes
Ledens protection air circuit	Yes	Yes
Laser wavelength	1050~1090m	1050~1090m
Power supply	±15V/3A	±15V/3A
Operation temperature	-15to 65℃	-15to 65℃
Storage temperature	-10to60℃	-10to60℃
Gun body weight	1600g	1600g
Dimensions of gun body LWH (mm)	251x91x108	251x91x108
