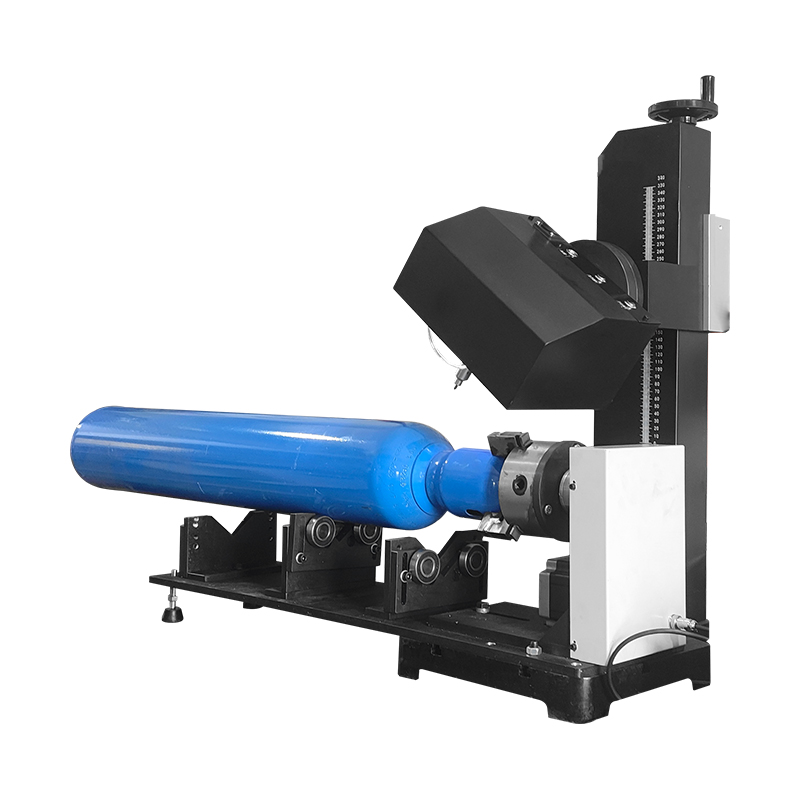

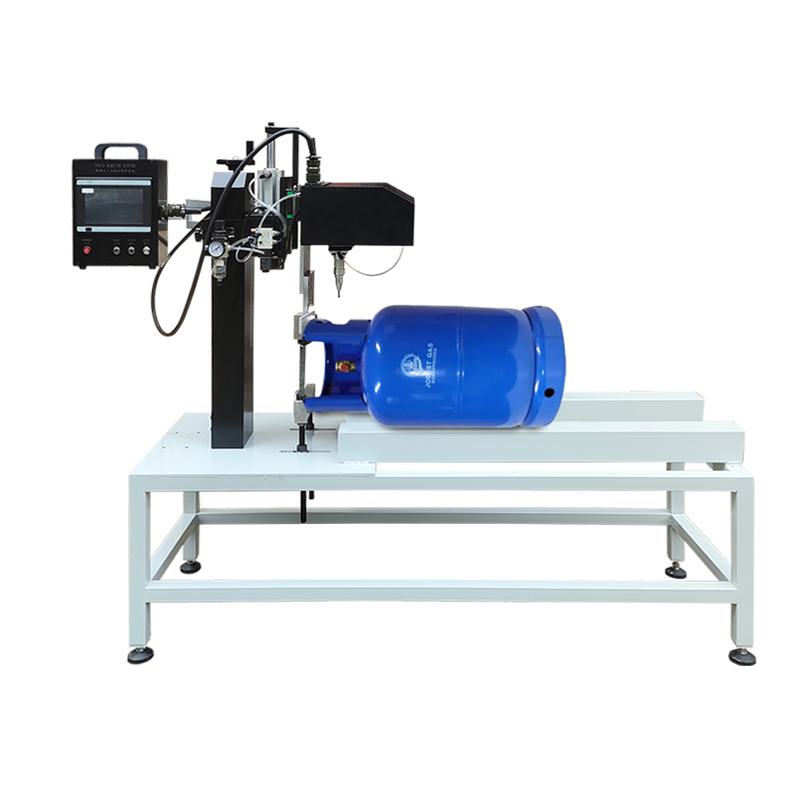

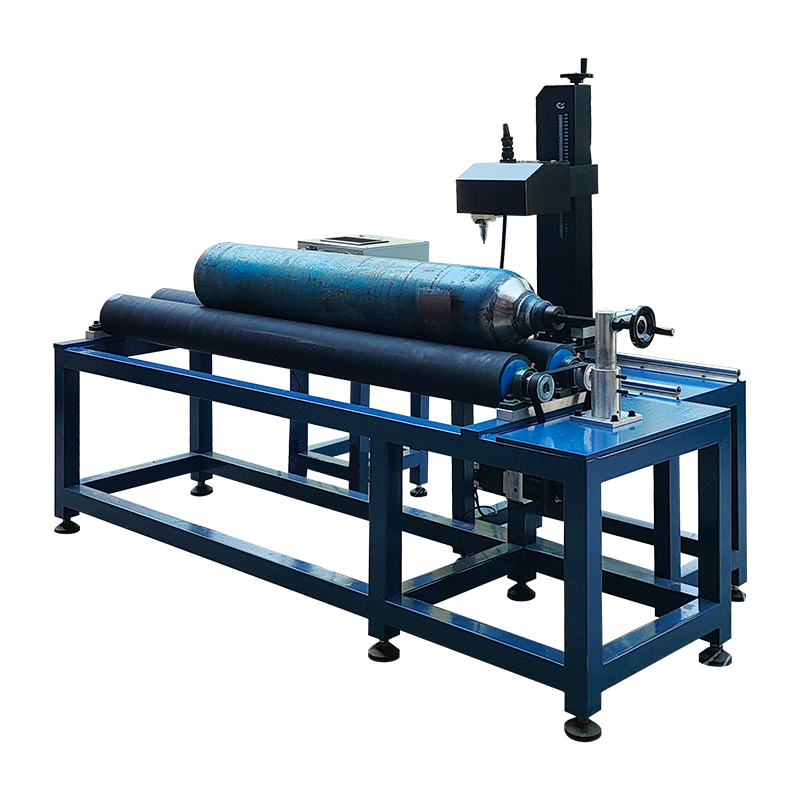

Horizontal & Vertical Pneumatic Cylinder Marking Machine
Description
What is Horizontal & Vertical Pneumatic Cylinder Marking Machine?
This cylinder marking machine is a special marking machine equipment for the gas industry. It is designed according to the curved surface of the bottle. The marking range is 80*40mm. and it can mark 80mm in length and 40mm in width, and can mark two rows.

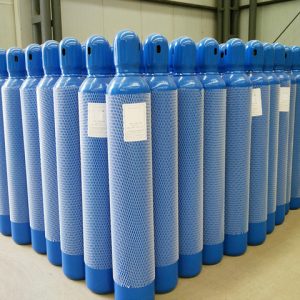

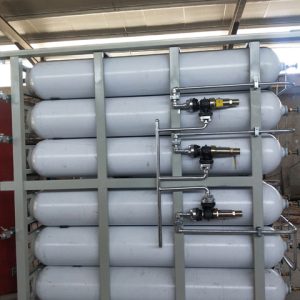

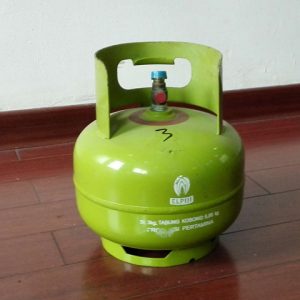

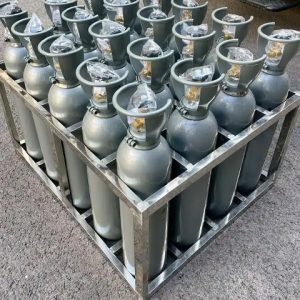

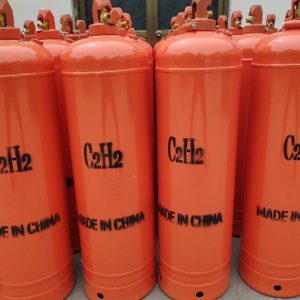

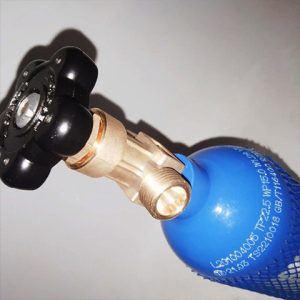

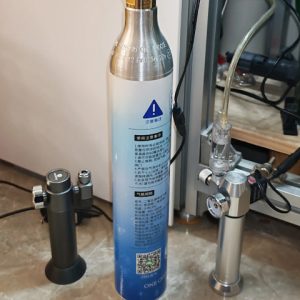

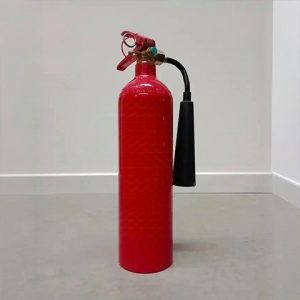

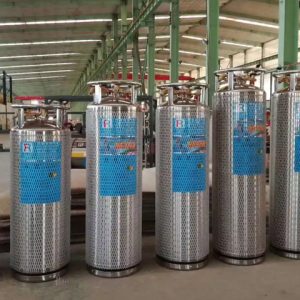

The Horizontal & Vertical Pneumatic Cylinder Marking Machine is the invention patent of our company, which is very practical for the gas industry. There are small cylinders and large cylinders, acetylene cylinders, oxygen cylinders, nitrogen cylinders, and argon cylinders.
Advantages of Horizontal & Vertical Pneumatic Cylinder Marking Machine
- The special marking needle for cylinders is used, with a large amplitude, and is specially designed to mark curved surfaces. The print is deep and clearly visible after painting. The marking needle is hardened and can be marked on high-hardness materials.
- Cylinder marking, special tooling. Can be used for many different sizes of cylinders
- Super large adsorption force battery iron, strong adsorption force, adsorption force can reach 30kg.
- The machine head is small and easy to use.
Product Features of Horizontal & Vertical Pneumatic Cylinder Marking Machine
- Equipped with multiple clamps, it is suitable for punching various cylinders of different sizes and weights
- Super large adsorption force electromagnet, the adsorption force can reach 30KG. The marking is more stable and not easy to slide.
- Ultra-long amplitude marking needle, suitable for marking on the curved surface of steel cylinders.

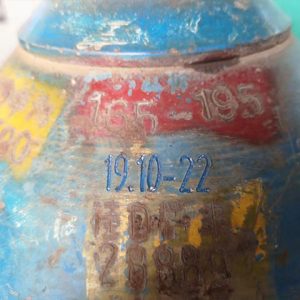

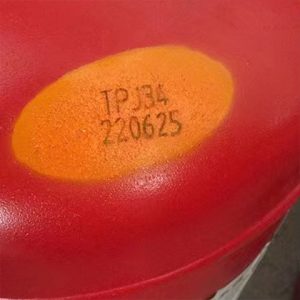

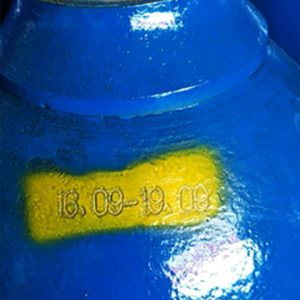

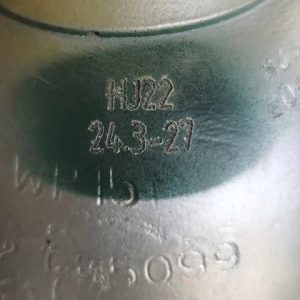

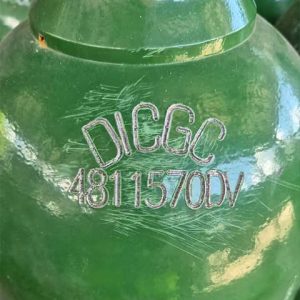

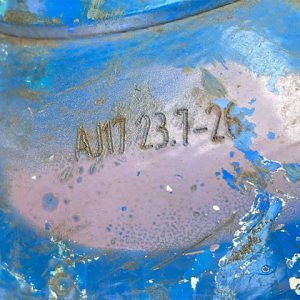

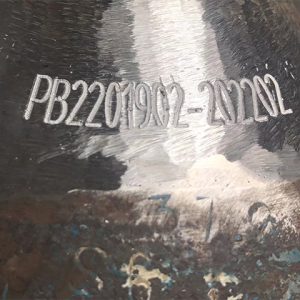

- The printing depth can reach 05mm, which is still clearly visible after painting.
Performance Parameter
| Applicable Products | Oxygen Cylinder, Nitrogen Cylinder, Cold Air Cylinder | print range | 80*40mm |
| print depth | 0.01-1mm | Repeatability | ≤0.04mm |
| Marking frequency | ≥3 characters/sec | Marking speed | 300 times/sec |
| Air pressure | 0.4-0.8MPa | Power type | pneumatic |
| Control System | T6 Touch screen T6 | Voltage | AC220V 50Hz |
| Machine power consumption | 350W | Head weight | 5KG |
| tag content | Numbers, English letters, common symbols, Chinese characters graphics, support for U disk import of drawing icons, automatic editing of serial numbers, linear codes and automatic continuous uninterrupted coding and other functions | Air source requirements | Air pump or argon nitrogen |
Horizontal & Vertical Pneumatic Cylinder Marking Machine Delivery Packing List
| name | quantity | unit |
| Portable Marking Machine | 2 | set |
| 7 inch touch screen controller | 2 | set |
| Airline | 2 | set |
| Air supply line | 2 | Set |
| Pressure regulating valve | 2 | set |
| Marking 6mm | 3 | set |
| power cable | 2 | set |
| belt | 4 | set |
| album | 2 | set |
| Instructions for use of marking machine | 2 | set |
| 7-inch screen operation instructions | 2 | set |
| certificate | 2 | set |
The cylinder pneumatic coding machine is guaranteed for two years, and various bottle coding machines can also be customized. Agents are also welcome to wholesale cylinder coding machines with more favorable prices.
